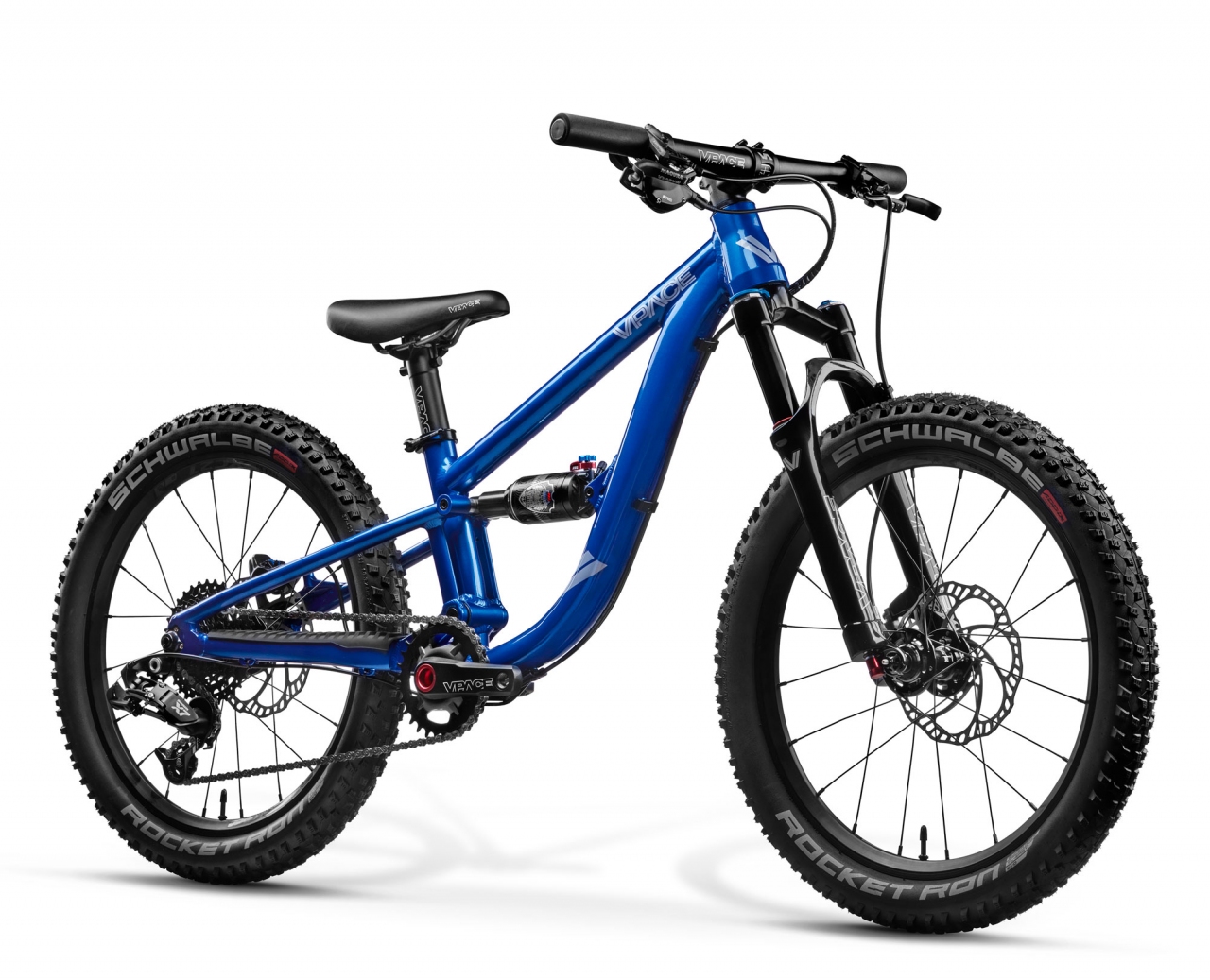

MORITZ20 Kids Trail Full-Suspension Bike

1. Frame color
2. Sattelstütze
€1,799.00 *

Prices incl. VAT plus shipping costs

Ihre aktuelle Auswahl:
Preise sind Prices incl. VAT plus shipping costs
Ihre aktuelle Auswahl: €0.00
MORITZ20 - the full-suspension trail rocket on the 29er principle, for kids from about 1.10 m ,... more

MORITZ20 - the full-suspension trail rocket on the 29er principle, for kids from about 1.10 m, at only 9.5 kg total weight. Why wait long and not already ride a mountain bike properly at the age of four or five?

The full-suspension trail rocket

With MORITZ you can shred the roughest trails, ride demanding tours or participate in enduro races. No other fully for kids is so versatile. MORITZ is incredibly potent in the downhill and thanks to the unmatched low weight yet strong uphill. The kinematics was designed specifically for low body weights. It is extremely plush and yet drive neutral. The geometry is absolutely state of the art, the weight super low and the equipment high quality, functional and robust.

MORITZ20 aluminum 6061, single-link full suspension with 12 mm x 142 mm thru axle. Prepared for dropper seatposts.
ca. 9,5 kg
fork / shock
VPACE SL suspension fork, 100 mm, QR - kidstuned - damper: Manitou, MARA Inline 170x30 (rear shock is rotated 180° contrary to the picture).
handle bar
VPACE, 540mm, 5mm low rise
VPACE, 40mm
VPACE MAX child crank, 105 mm, 30 teeth direct-mount narrow-wide chainring, Q-factor: 150 mm
SRAM X5/X7 Trigger rear derailleur with 9 speeds, MICROSHIFT Advent 11-38 cassette
Magura MT4 with HC1 lever and Magura Storm SL brake discs, 160 mm
Tire, Schwalbe, Rocket Ron 20 "x2.25, EVO, Addix
wheel set
VPACE WTB XC21, 20", 20H, 1150 g

What our MORITZ can do

Due to the relatively large wheels (20") - compared to other bikes - the rollover behavior and the driving stability is optimized even at higher speeds in the terrain. The modern geometry with a flat steering angle and the slightly shorter rear ensure lots of fun off-road and flow on the trail. The weight and components are, as usual from us tailored to the offspring. The tube dimensions of the frame were designed for the weight of the kids, but also withstand the roughest load - a simple, lightweight but efficient single-link Fully without unnecessary frills. Thanks to a special tuning of the shocks and a clever location of the pivot point, the MORITZ system works very efficiently and drive neutral. The suspension travel is 100 mm. The high gear ratio provides a good response and efficient use of the suspension travel with a low body weight.

That can our MORITZThe 29er principle.

Kids who are set at other manufacturers, for example, on 20 inches, start with us on 24 inches through and benefit especially from the running smoothness and driving stability. MORITZ is thus virtually a 29er on the basis of 20 - 29 inch wheels. Obstacles are better rolled over thanks to the larger wheels and the little junior athlete gains driving safety at increasing speed. In addition, it just looks damn good - just like the big ones!

Range of use

The MORITZ20 corresponds to a mountain bike of category 3. Bikes of this category can also be used on rough trails, in rough terrain and on difficult routes that require good riding technique. Jumps and drops can occur here up to a maximum height of 60 cm. The MORITZ20 children's bike is designed for a rider weight of max. 35 kg.

MORITZ20 Kids Trail Full-Suspension Bike Geometry

Seat tube (A)
260 mm
Fork installation height (C)
410 mm
Head tube (D)
90 mm
Reach (E)
335 mm
Stack (F)
469 mm
Steering angle (G)
Seat angle (H)
BB drop (K)
30 mm
Chainstay (L)
360 mm
Wheelbase (M)
938 mm
Rider size
ab 1,10 m

The MAX children's bikes can be ridden from the beginning of the size recommendation idR two to three years and cover a size growth of maximum 15-20 cm - after adjustment of seatpost and stem.
